技术参数SPECIFICATIONS
线数(Poles):1、2、3
适用线规(Applicablewires):AWG24#~18#
适应基板厚度(ApplicablePCboard thickness):1.6mm
温度范围(Temperaturerange):-25℃~85℃
额定电压(Voltagerating):250V.Ac/Dc
额定电流(Currentrating):7A
接触电阻(Contactresistance):≤0.01Ω
绝缘电阻(Insulationresistance):≥1000Ω
耐压(Withstandvoltage):1500VAc/1min
材料(Material):
孔座(Housing):尼龙(PA66)UL94V-2(0)
针座(Wafer):尼龙(PA66)UL94V-2(0)

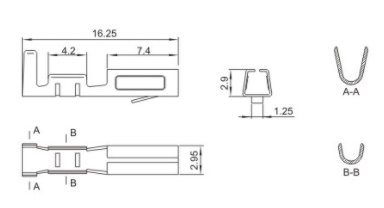

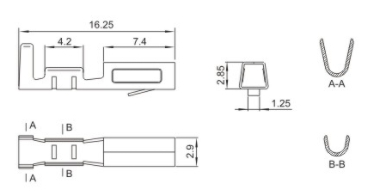

端子(Terminal):磷青铜(PhosbronzeTin/plated)
